LUCKYDRAGON TECHNOLOGY provides high-quality and high-quality services to customers with professional PCB design concept, excellent PCB LAYOUT team and strict design process. The company provides PCB impedance calculation and laminate design for customers free of charge; we support mainstream design tools in the industry: Cadence/Allegro, Pads, Altium etc., schematic tool support: CIS/ORCAD, Protel DXP, Design Capture, etc.
PCB Design Needs To Provide Information：
1. Schematic diagram: it can generate the complete electronic document format of the correct netlist;
2. Mechanical dimension: provide the specific position and direction identification of positioning devices and the identification of specific height limit position area;
3. Device packaging: provide device packaging library or electronic material specification;
4. Wiring guide: description of specific requirements for special signals, as well as design requirements for impedance and lamination, etc.

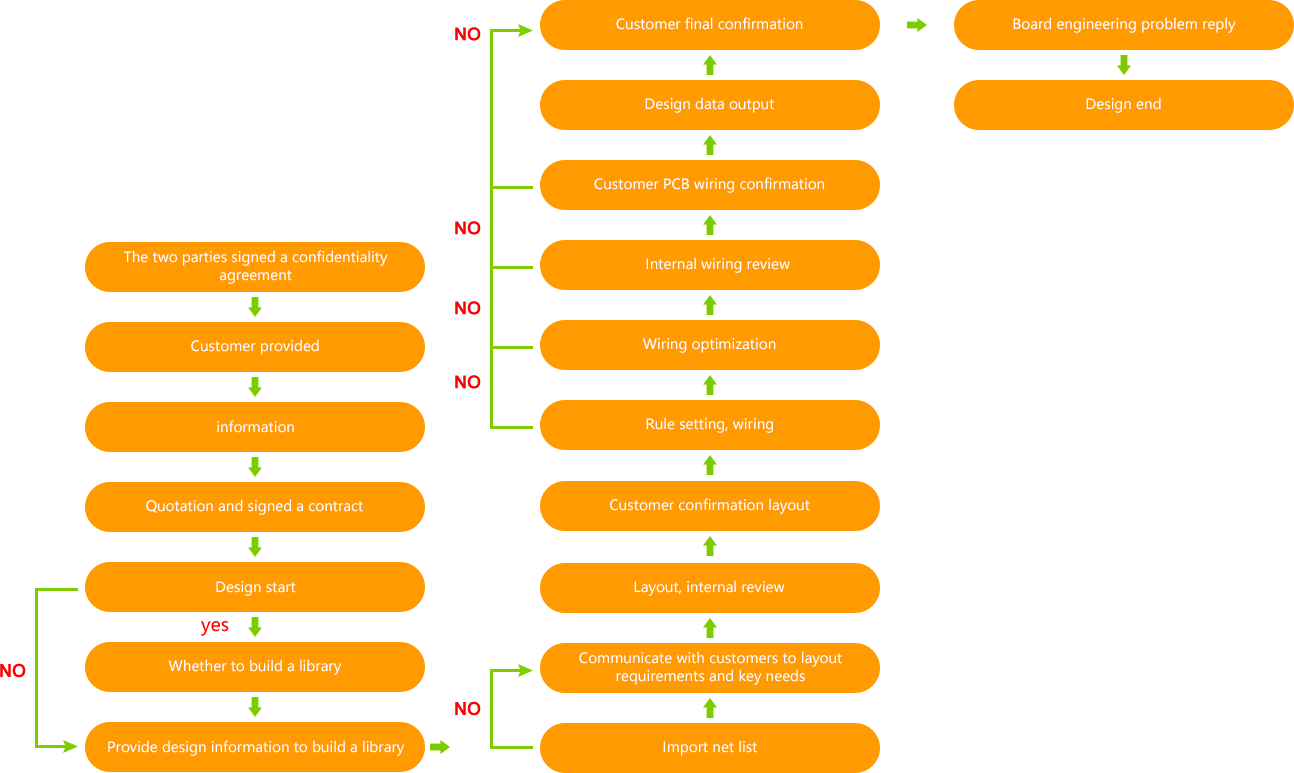

Design Flow
Design Parameters
|
Highest Layers |
Unlimited |
Maximum Design PIN |
60000 |
Maximum Connections |
42000 |
|
Minimum Line Width |
2mil |
Minimum Line Spacing |
2.5mil |
Minimum Hole |
4mil(Radium perforation) |
|
Maximum Number Of BGA |
18 |
Minimum BGA PIN Spacing |
0.4mm |
Maximum BGA PIN Number |
4200 |
|
Maximum Number Of Networks |
15000 |
|
|
|
|
Design Lead-time
|
Board Pin Number |
0-1000 |
Design lead-time(Working Day) |
3-5Day |
|
2000-3000 |
5-7Day |
||
|
4000-5000 |
8-12Day |
||
|
6000-7000 |
12-15Day |
||
|
8000-9000 |
15-18Day |
||
|
10000-12000 |
18-20Day |
||
|
13000-15000 |
20-22Day |
||
|
16000-18000 |
22-25Day |
||
|
18000-20000 |
25-30Day |
||
|
Limit due date capability |
10000Pin/6Day |
||
|
PS：The above delivery period is the regular delivery period. The accurate Design Lead-time period needs to be comprehensively evaluated according to the number of components of the circuit board, the difficulty level, the number of layers and other factors! |
|||
