1. Single-Sided Flexible Circuits
These are the most cost-effective option. They should be used when electrical performance requirements are modest and the circuitry can be routed on a single side. This is the most common type, widely used in commercial applications such as printer ink cartridges and computer memory modules. A single-sided flexible circuit consists of a single layer of conductive traces-typically rolled-annealed copper foil-chemically etched onto a flexible insulating substrate. Common materials for this insulating substrate include polyimide (Kapton), polyethylene terephthalate (PET), aramid fiber paper (Nomex), and polyvinyl chloride (PVC).
2. Double-Sided Flexible Circuits
Double-Sided flexible circuits feature conductive traces etched onto both sides of a flexible base film. Metallized vias (plated through-holes) connect the conductive patterns on either side of the insulating material, creating electrical paths that support the circuit's intended design and functional requirements. Coverlays (protective films) are applied to shield the conductive traces and indicate the designated placement locations for electronic components.
3. Multilayer Flexible Circuits
Multilayer flexible circuits are constructed by laminating three or more layers of single-sided or double-sided flexible circuits together. Through-holes are drilled and then plated to create metallized vias, establishing electrical connections between the various layers. This approach eliminates the need for complex, individual soldering processes. While, in theory, there is no limit to the number of conductive layers that can be incorporated, designers must carefully balance the number of layers, the overall physical dimensions, and the required degree of flexibility to ensure ease of assembly.
4. Rigid-Flex Circuits

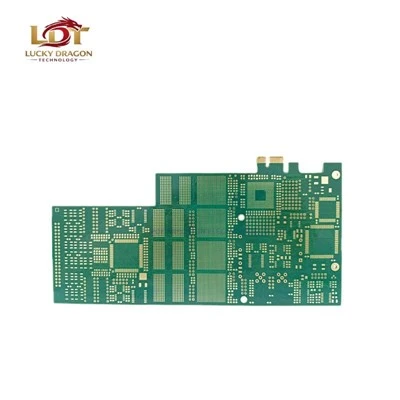

HDI (High-Density Interconnect) Rigid-Flex Circuits represent a high-end class of printed circuit boards. They are designed to meet the evolving demands of electronic products, which are increasingly trending toward miniaturization, higher frequencies and speeds, and greater functional integration. HDI rigid-flex printed circuit boards (PCBs) combine the advantages of both standard HDI boards and rigid-flex boards. They facilitate the development of electronic systems toward higher levels of integration and intelligence, and are now widely used in high-end electronic products across sectors such as aerospace, medical equipment, and consumer electronics. Traditional rigid-flex boards are constructed by selectively laminating rigid and flexible substrates together. They feature a compact structure, with conductive connections established via metallized (plated) holes. To optimize for both reliability and cost, manufacturers should aim to keep the layer count as low as possible.
